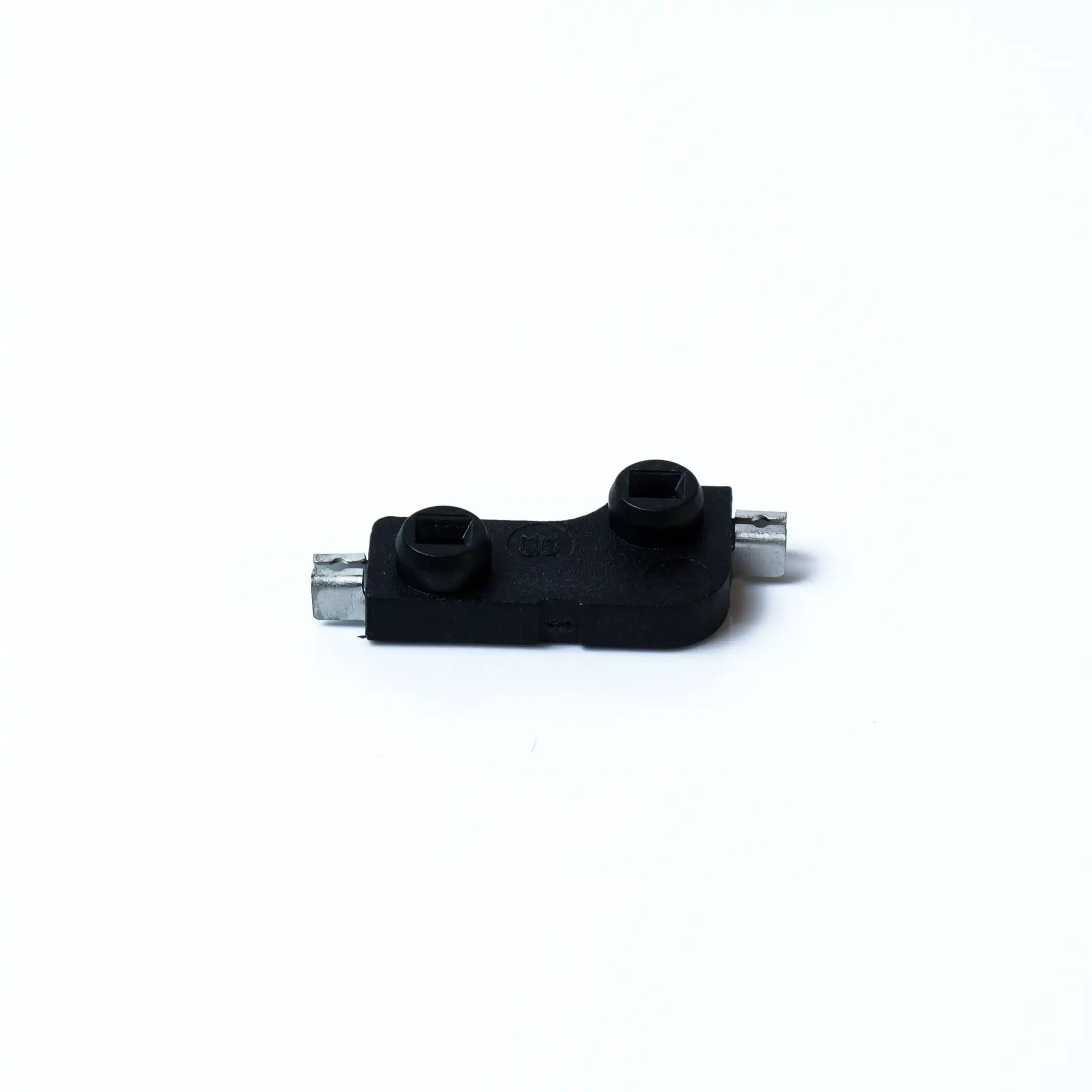

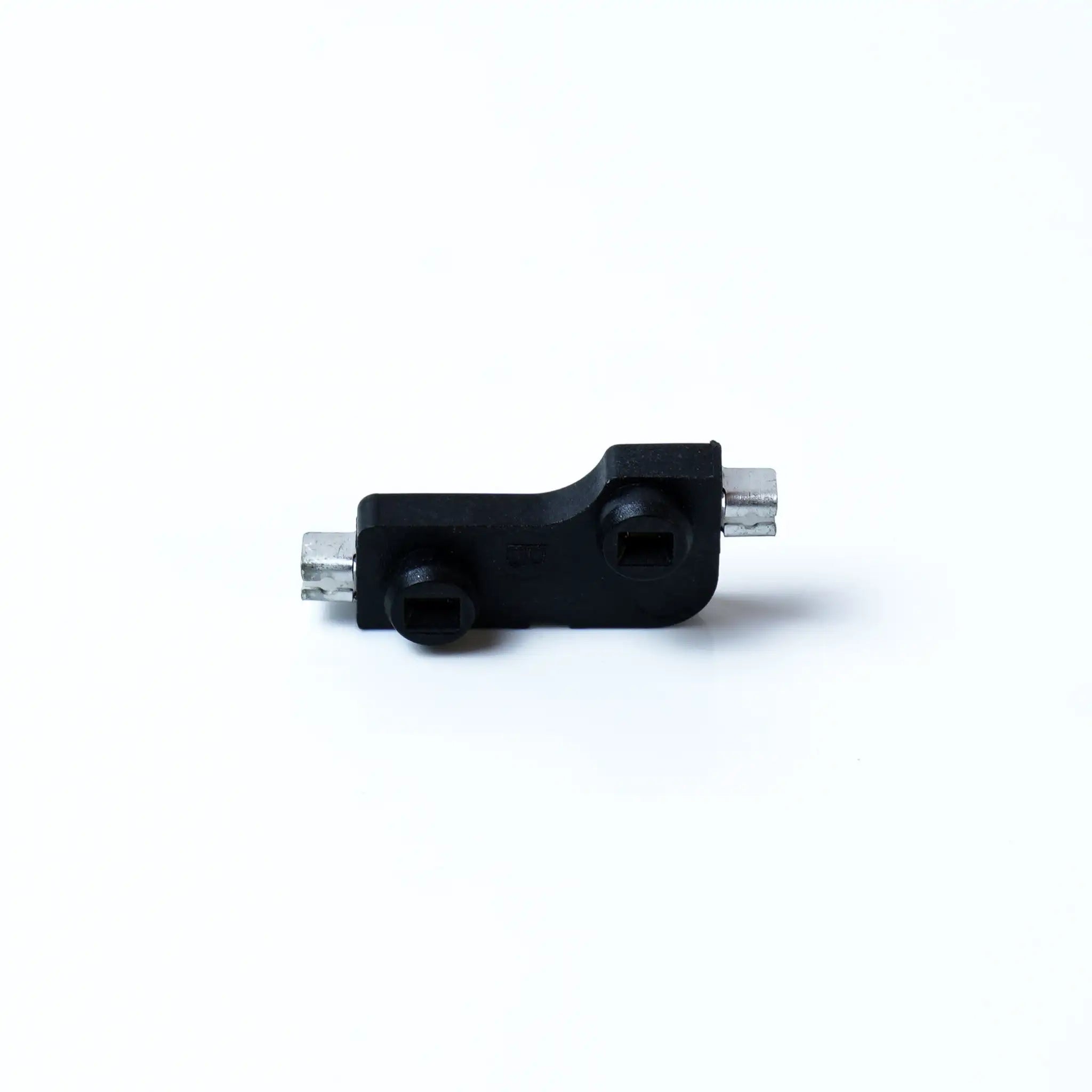

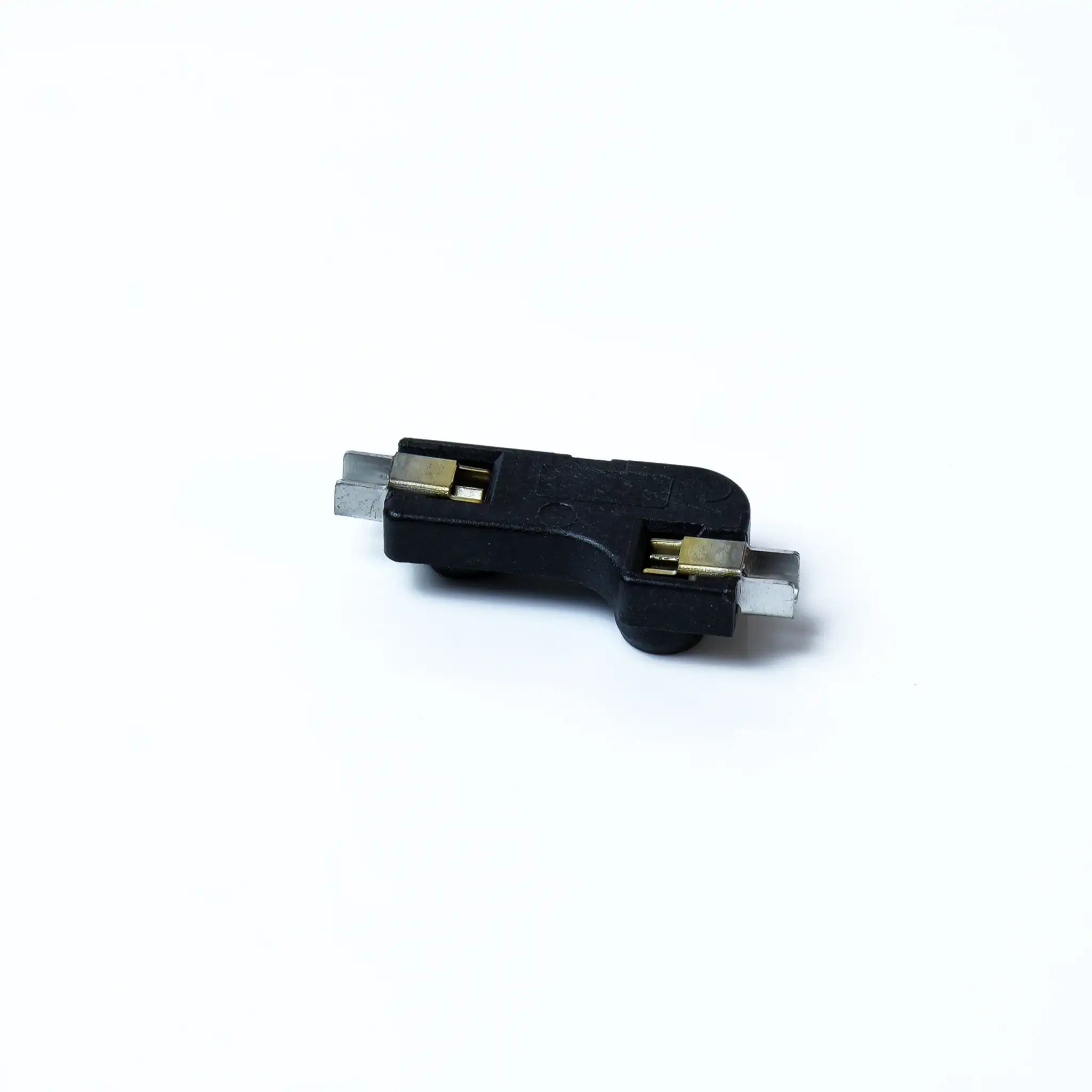

Durock PCB Hotswap Sockets
Elevate your mechanical keyboard customization with Durock PCB Hotswap Sockets. Designed for seamless integration, these sockets allow effortless switch swapping without soldering, enabling you to tailor your typing experience with ease.
Key Features:
-
Compatibility: Supports MX-style switches, including Cherry, Gateron, and Kailh, for versatile customization.
-
Durability: Engineered for up to 100 switch insertion cycles, ensuring long-lasting performance.
-
Specifications:
- Rated Voltage: 12V AC/DC (maximum)
- Rated Current: 10mA AC/DC (maximum)
- Contact Resistance: 200mΩ (maximum)
- Insulation Resistance: 100MΩ (minimum) at 100V DC
- Withstand Voltage: AC100V (50-60Hz)
- Operating Life: 100 cycles
Package Includes:
- 110 Durock PCB Hotswap Sockets
Note: Ensure your PCB is compatible with hotswap sockets before installation. Not all PCBs are designed to accommodate these sockets.
